Gasification boiler Slokov PYRO THERM 20 (EKODESIGN)

Steel hot-water gasification boiler for burning lump wood

The boiler consists of welded steel sheets. The internal space is divided into a feed shaft, a combustion chamber and an exchanger through which the flue gases flow to the flue throat. The feed shaft is at the top of the boiler, the bottom of the feed shaft consists of a nozzle which directs the flame down into the combustion chamber. Secondary air is supplied to the flame through the nozzle to ensure complete combustion. From the combustion chamber, the flue gases flow through a tubular heat exchanger and fan into the chimney.

For easy fuel feeding, the boiler has a large feed door which, when opened, automatically opens the flue. This ensures that the flue gases are extracted from the area around the door during feeding. In addition, when the door is opened, the fan speed is increased to the maximum so that almost all the smoke released during feeding is extracted into the chimney.

Boiler use, fuel

PYRO THERM steel hot water boilers are a heat source suitable for heating apartments, houses, business premises and similar buildings with a heat loss of 15-30 kW. The heating system can be with an open or pressurized expansion vessel, with gravity or forced circulation of heating water, with a maximum overpressure of 200 kPa.

PYRO THERM boilers are designed for burning dry wood with a maximum moisture content of up to 20%, i.e. round logs up to 100 mm diameter and 330 mm or 500 mm long (depending on the size of the boiler), or split wood with or without bark. The manufacturer recommends that the fuel be placed in the feed chute lengthwise to allow for smooth burning and passage of the fuel. When using awkwardly shaped wood, increased operator supervision is required.

In addition to expert installation, good operation is also dependent on the requisite chimney draft and correct operation.

PYRO THERM boilers are classified as class 5 according to EN 303-5. According to this standard, the boilers must be connected to an accumulation tank, which is used to remove surplus heat.

Main dimensions of boiler PYRO THERM 20

Legend

1 – Control panel
2 – Lid of exchanger
3 – Primary air damper
4 – Flue
5 – Exhaust fan
6 – Connecting block
7 – Heating water inlet
8 – Discharge tap
9 – Cooling loop inlet and outlet
10 – Heating water outlet

Cross section through boiler PYRO THERM 20 with marked flow of flame and flue gases

11 – Control panel
12 – Loading door
13 – Fuel shaft
14 – Secondary air inlet
15 – Fuel shaft ceramics
16 – Combustion chamber door
17 – Combustion chamber
18 – Tube exchanger
19 – Ventilation fan
20 – Flue gas neck
21 – Lid of exchanger

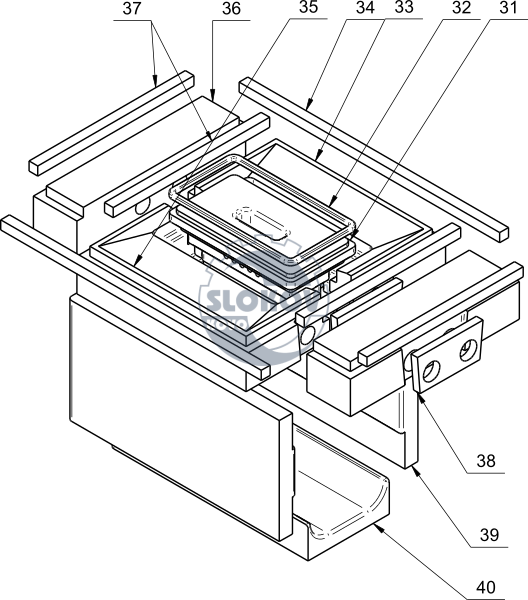

Composition of ceramic in boiler Slokov PYRO THERM

31 – Nozzle
32 – Nozzle sealing cord 10×10
33 – Right nozzle side
34 – Side sealing cord 20×20
35 – Left nozzle side
36 – Setting block front rear (only for 25.30kW)
37 – Sealing cord front rear 20×20
38 – Secondary air sealing
39 – Combustion chamber side
40 – Combustion chamber bottom
